Serial Adsorption (PSA) Oxygen Plants

Serial oxygen units of the AKS model range are designed to generate gaseous oxygen from atmospheric air with up to 95% purity (up to 99% through the use of after-purification phase). When required, the equipment enables to place a complete oxygen generation cycle and oxygen cylinder filling in minimum floor space. The plants are highly-automated, failure-safe, easy to operate and maintain.


up to 100 m³/h

Oxygen purity

up to 95–99%


0.5 MPa; 15 MPa

Warm-up period

up to 20 minutes

The offered by Grasys serial oxygen plants of the AKS model range are designed to generate gaseous oxygen with up to 99% purity from atmospheric air with capacity ranging from 5.5 to 100 m³/h.

Should the Customer need bottled oxygen, Grasys can offer serial adsorption oxygen cylinder filling units AKSB made being inspired by the AKS units that so far have given a splendid account of oneself.

The operating principle of the AKS adsorption oxygen generator is based on properties of the adsorbent materials selectively absorbing nitrogen molecules and impurity gases contained in the atmospheric air while letting oxygen molecules pass through. All adsorbents used in oxygen generators undergo certification procedure and inspection in Russia, which guarantees the system reliability and high quality of the generated product.

Product Images

Adsorption Oxygen
cylinder filling Plants

Grasys is proud to offer serial AKSB adsorption oxygen plants to fill cylinders, as well as units designed in line with the Customer’s specifications. The unit capacity ranges from 20 to 1,000 cylinders per day with the generated oxygen purity up to 99%. Should the Customer take interest in prompt deploying oxygen production on site and its filling in cylinders, Grasys can offer mobile nitrogen plants to fill cylinders.

Adsorption Oxygen cylinder filling Plants

Product Design Options

Fixed Design

Free equipment placement.

Fixed Design

On-skid or on-platform design allowing for the system quick installation and start-up.

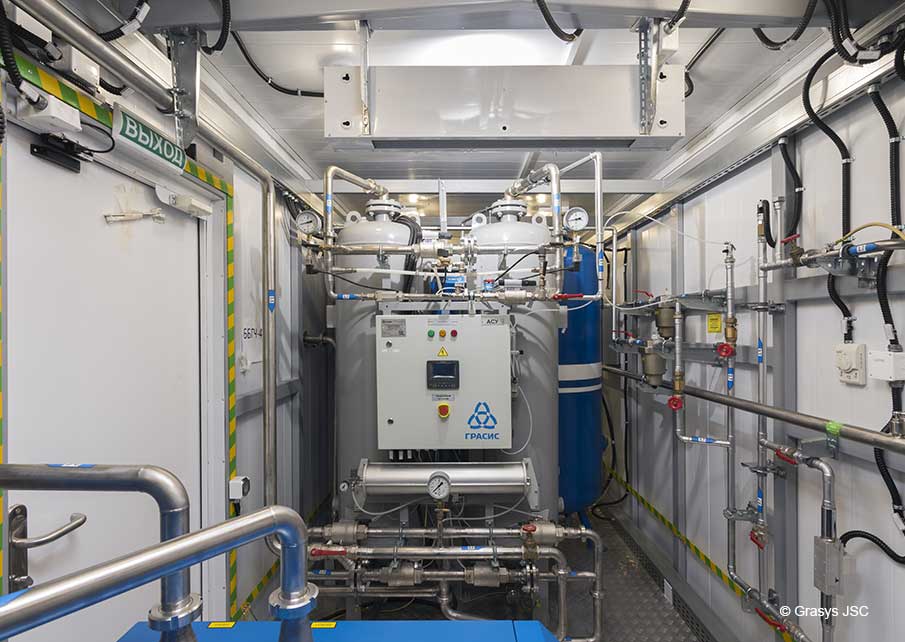

Packaged Modular (Transportable)

Modular container or sea container design. Operation in various climatic zones.

Capacity, m³/hup to 100

Oxygen purity, %up to 95–99

Pressure, MPa0.5; 15

Dew point temperature, °C−70

Operating temperature, °C+5 to +40

Unit operating life, thousands hoursup to 70–120

General Description

Grasys manufactures oxygen generation equipment based on well-proven (PSA) and (VPSA) technologies. The operating principle is based on the properties of adsorbing materials to selectively absorb molecules of nitrogen and impurity gases contained in atmospheric air, while allowing oxygen molecules to pass through. All the adsorbents used in the equipment are certified and approved in Russia, which guarantees the reliability of the systems and the high quality of the oxygen produced.

The use of air-separating adsorption oxygen generation plants can reduce the cost of the oxygen produced many times over. The undisputed advantage of these systems, apart from the economic benefits, is their ease of use and maintenance, as well as very high reliability.

Oxygen generation plants are used for a wide range of applications, the most popular being autogenous oxygen (except for automatic metal cutting). Oxygen generators are also used in the silicate, pulp-and-paper, food and pharmaceutical industries, fish farming, waste water treatment and ozone plant feeding, solid waste incineration and health care.

Grasys offers a wide range of air separation units for oxygen generation, from small mobile units for metal cutting and welding to systems for independent filling of standard oxygen cylinders at 150 atm in the production facility.


  • Raising the temperature in melting and glass furnaces
  • Preparation of different chemical compounds
  • Reducing sulphur deposits in refineries
  • Gas welding, cutting, soldering of metals
  • Reducing fry incubation time in fish farming
Control and Monitoring System

Advanced, Smart GRASYS Intelligent Control-8 Control and Monitoring System

The advanced, smart GRASYS Intelligent Control-8 monitoring and control system ensures the simplest and most convenient control of the GRASYS oxygen generator.

The GRASYS Intelligent Control-8 monitoring and control system provides:

  • Full control of all unit systems;
  • Manual, automatic and remote control options;
  • The ability to integrate the unit's control system into the factory-wide control system;
  • Emergency interlocks to protect against falling outside the permitted limits of key process parameters;
  • Switching the generator to standby mode under zero oxygen consumption;
  • A wide range of additional options, including the ability to control unit parameters via the Internet.


  • Fully automated, easy to maintain
  • High fault-tolerance, reliability
  • Minimal operator supervision is required during operation
  • Quick system start-up and shutdown
  • High purity of the oxygen generated
  • Small-sized, lightweight
  • Low operating costs

Operating Procedure When Dealing With R&P Co. Grasys


Submit a request on the site or reach our specialist by phone


Grasys expert speaks to you and finds out your needs


You fill out a questionnaire with the desired equipment parameters


Our expert prepares a quotation with the most efficient solutions to your application. Contract to be concluded


We perform engineering, designing, manufacture equipment with its further testing and placing into service, etc


We ship equipment to the operational location and provide a package of documents


We are engaged in start-up operations and equipment commissioning


We provide aftersales service to ensure equipment efficient performance and reliability excellence (optional)

Advantages of Cooperating with R&P Co. Grasys

High-tech Russian manufacture

Implementation of import substitution programs

Hands-on experience in implementing over 1500 projects within 20 years

Manufacturing equipment of any size and level of sophistication

Turnkey projects (EPC-contracts)

Prompt technical support
