Cryogenic Oxygen Plants

Units that produce liquid and gaseous oxygen from air, based on deep air cooling technology.
The equipment is designed to produce gaseous and liquid oxygen with a purity of up to 99.95% from atmospheric air.

Capacity

up to 100,000 m³/h

Oxygen purity

up to 99.95%

Pressure

up to 20 MPa

Dew point

down to –70 :°C


Cryogenic technology is the only gas separation technology capable of producing high purity (99–99.95%) oxygen for plant requirements. The permissible purity of the oxygen generated by membrane and adsorption units is limited to 50% and 99%, respectively.

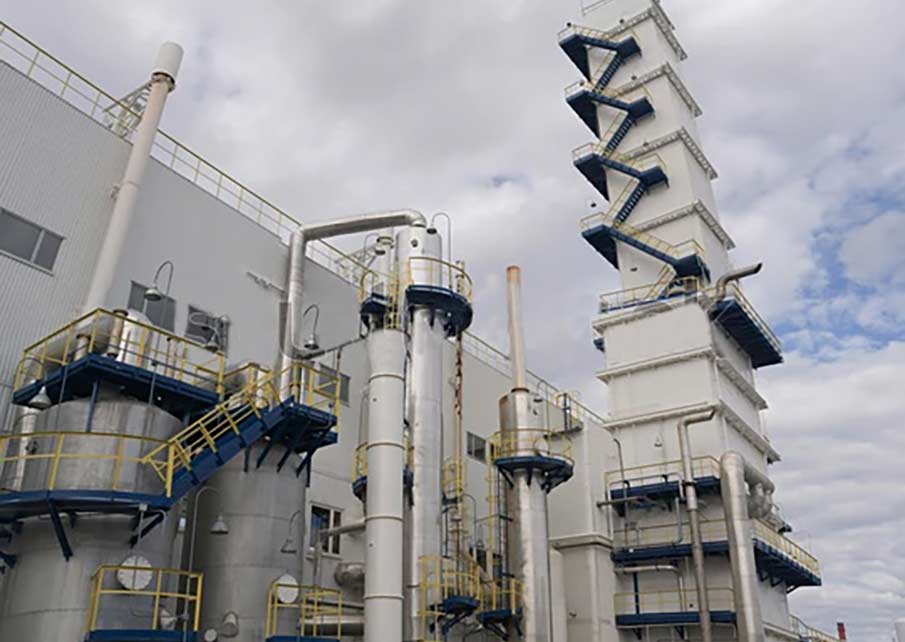

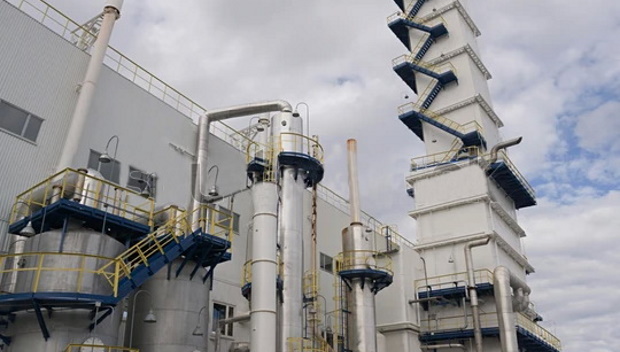

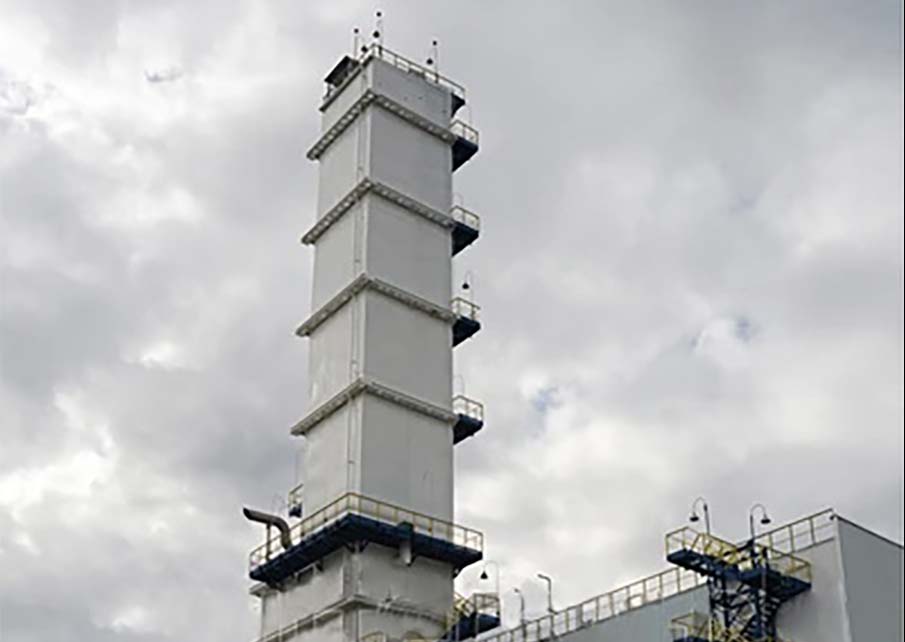

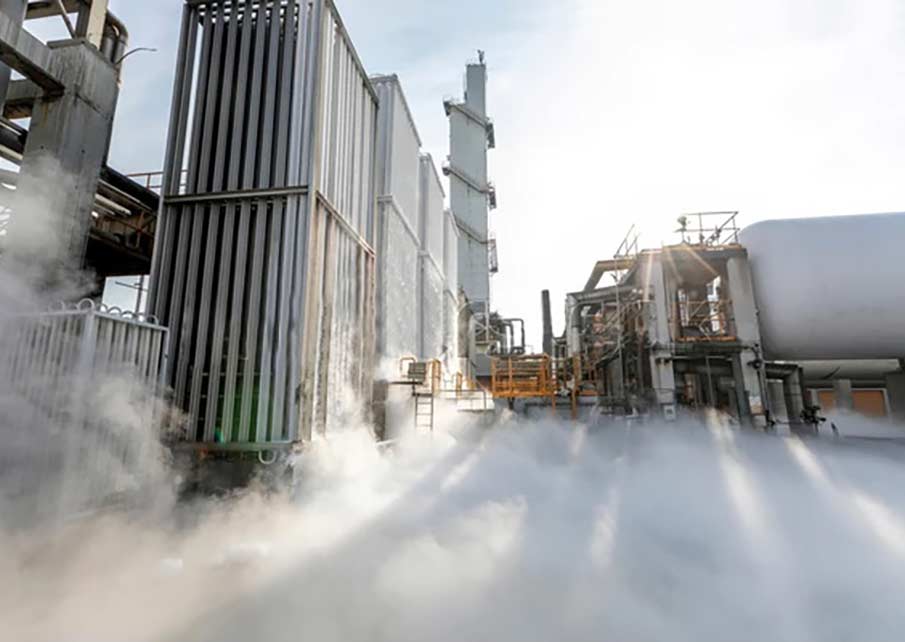

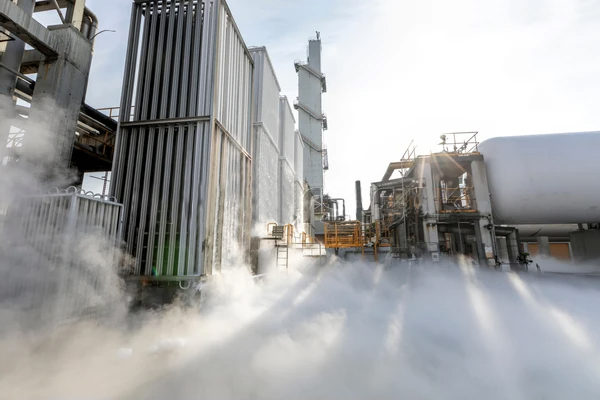

Product Images

Тех. характеристики

Capacity, m³/hup to 100,000

Oxygen purity, %up to 99.95

Pressure, MPaup to 20

Dew point temperature, °C−60 to −70

Operating temperature, °C−45 to +40

Unit operating life, thousands hours150 to 250

General Description

Cryogenic technology is the optimum choice for high oxygen consumption. In general, cryogenic systems are preferable when consumption exceeds 1,000 m³/h because they are more cost effective.

Another advantage of cryogenic oxygen generation units is the ability to produce oxygen in two states: gaseous and liquid. With the alternative technologies (membrane and adsorption), only gaseous oxygen can be generated.

Operating Procedure When Dealing With R&P Co. Grasys

1

Submit a request on the site or reach our specialist by phone

2

Grasys expert speaks to you and finds out your needs

3

You fill out a questionnaire with the desired equipment parameters

4

Our expert prepares a quotation with the most efficient solutions to your application. Contract to be concluded

5

We perform engineering, designing, manufacture equipment with its further testing and placing into service, etc

6

We ship equipment to the operational location and provide a package of documents

7

We are engaged in start-up operations and equipment commissioning

8

We provide aftersales service to ensure equipment efficient performance and reliability excellence (optional)

Advantages of Cooperating with R&P Co. Grasys

High-tech Russian manufacture

Implementation of import substitution programs

Hands-on experience in implementing over 1600 projects within 20 years

Manufacturing equipment of any size and level of sophistication

Turnkey projects (EPC-contracts)

Prompt technical support
