Mobile Nitrogen Compressor Stations

The mobile nitrogen compressor station is a highly efficient, exceptionally reliable system for producing nitrogen at any pressure required by the Customer: low or high. Nitrogen compressor stations are available in containerised and trailer-mounted versions, as well as in self-propelled version on KamAZ and URAL motor vehicle chassis. All climatic versions can be provided.

Product Images

Product Design Options

Fixed Design

Free equipment placement, on-skid or on-platform design.

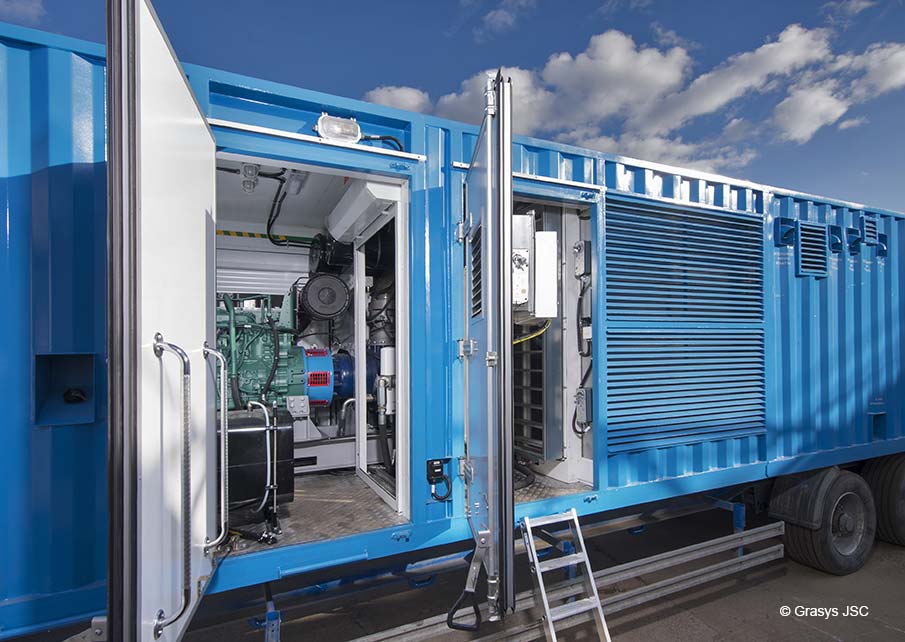

Packaged Modular (Transportable)

Modular container or sea container design. Operation in various climatic zones.

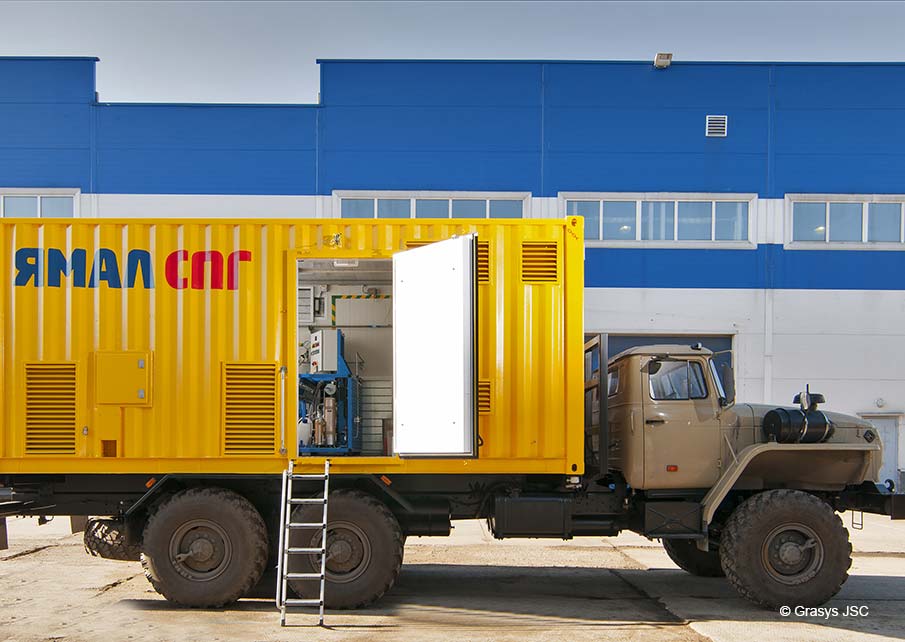

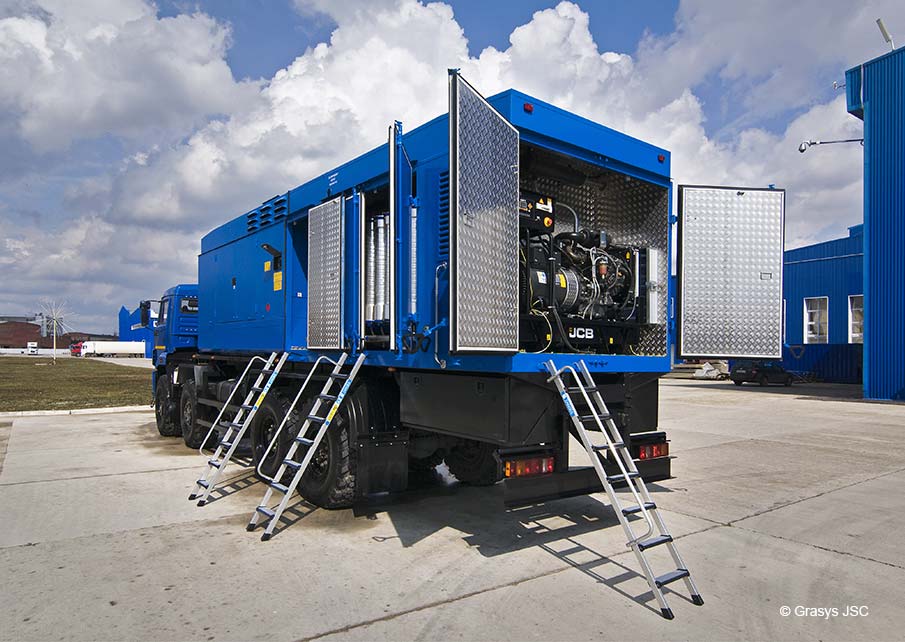

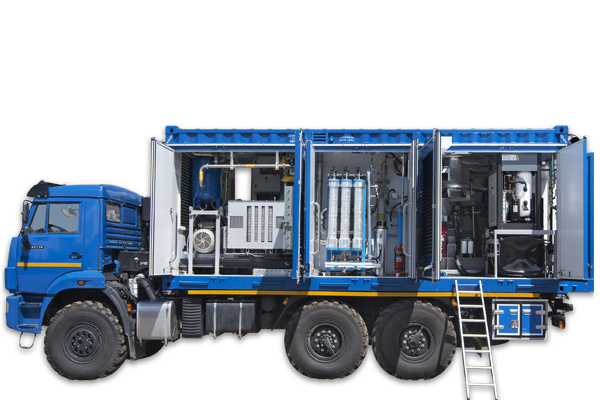

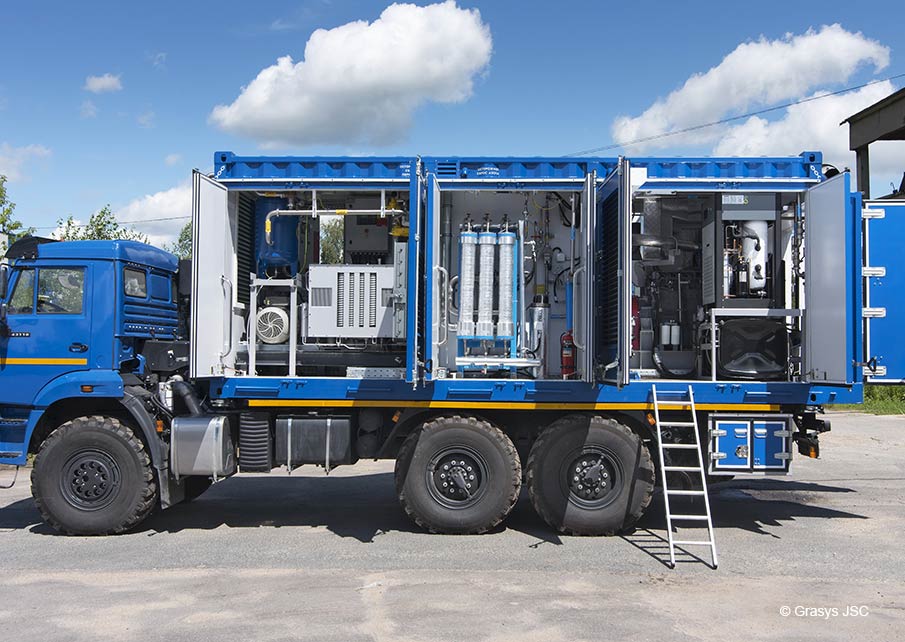

Truck-Mounted

Designed on a trailer, skids, as well as in a self-propelled version based on the KamAZ and URAL chassis.

Prefabricated Building

Modular frame building using light steel thin-walled structures and sandwich panels.

Capacity, m³/hup to 2,000

Nitrogen purity, %up to 99.9

Dew point temperature, °C−40 to −60

Operating temperature, °C−45 to +40

General Description

Air compression technology, which was widely used in the CIS due to its high processability, is now prohibited by the “Safety Regulations in the Oil and Gas Industry” PB 03-576-03. The use of a mobile nitrogen compressor plant effectively solves the problem of applying a compression method using an explosion proof inert mixture.

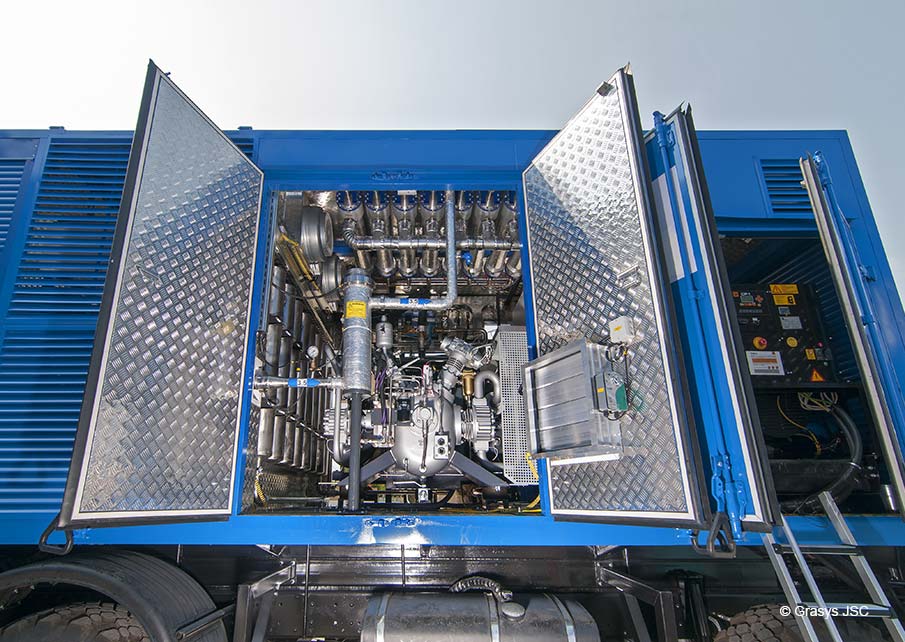

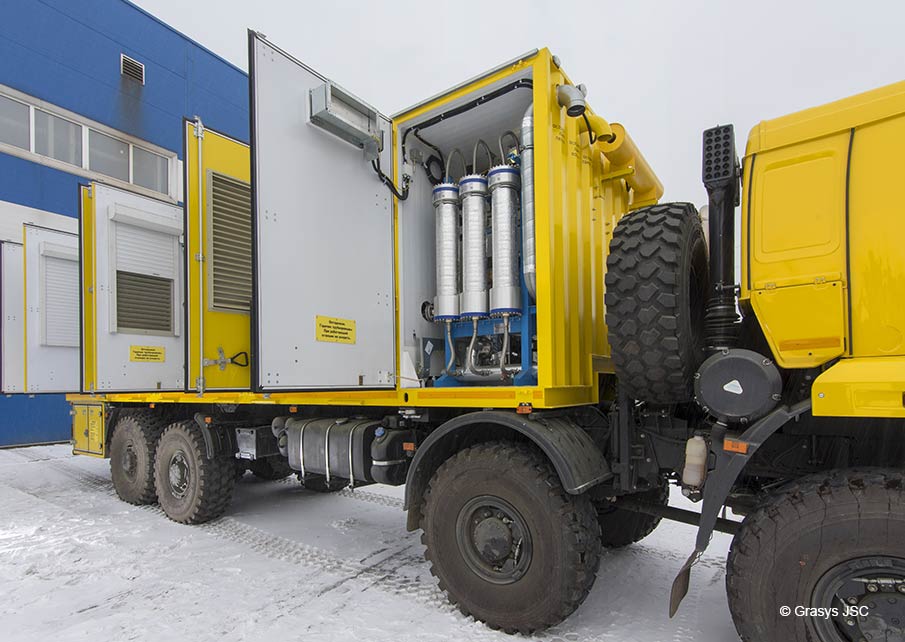

Structurally, the nitrogen generation plant is a self-contained system consisting of a gas separation unit and a diesel compressor, available in chassis-mounted or portable versions. The equipment of the nitrogen compressor plant is covered by a metal body. One of the key components of the package, which largely determines its reliability and durability, is the gas separation unit based on hollow fibre membrane technology.

Grasys manufactures air mixture separation units based on the latest scientific advances in membrane gas separation. A key advantage of Grasys membrane nitrogen generation systems used in mobile nitrogen compressor plants is their high reliability, unpretentious operation and ease of maintenance.

The MVA series units and stations are recommended by the State Technical and Mining Inspectorate (Gosgortechnadzor) for drilling, development, repair and operation of gas and oil wells, exposure of product formations, repair and operation of pipelines and reservoirs. Mobile nitrogen compressor equipment is designed to generate a nitrogen-based inert gas mixture containing a maximum of 10% oxygen at a mixture pressure of 20 MPa from atmospheric air.

Advanced, Smart GRASYS Intelligent Control-8 Control and Monitoring System

The advanced, smart GRASYS Intelligent Control-8 monitoring and control system ensures the simplest and most convenient control of the GRASYS mobile nitrogen compressor station.

The GRASYS Intelligent Control-8 monitoring and control system provides:

Full control of all nitrogen compressor plant systems;
Manual, automatic and remote control options;
The ability to integrate the unit's control system into the factory-wide control system;
Emergency interlocks to protect against falling outside the permitted limits of key process parameters;
Switching the unit to standby mode under zero nitrogen consumption;
A wide range of additional options, including the ability to control unit parameters via the Internet;
Archiving the main technical parameters of the equipment;
The control panel is equipped with an active LCD display and shortcuts to access the most important functions.
