Mobile Membrane Nitrogen Generators

A turnkey package for nitrogen generation from atmospheric air in a containerised module that operates in all climate zones and under all weather conditions, including autonomous operation. Plants can vary the purity of the product they generate over a wide range.

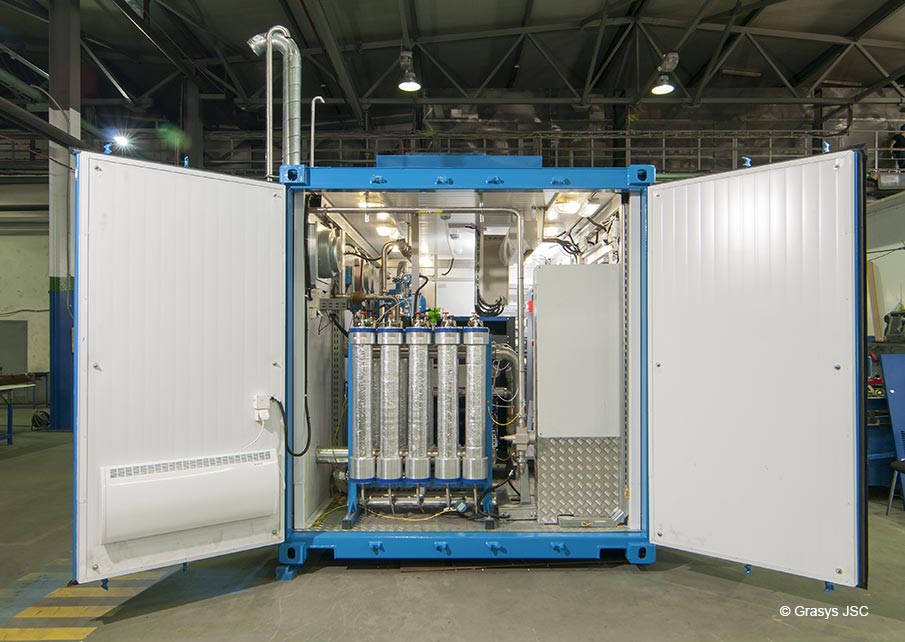

Product Images

Product Design Options

Fixed Design

Free equipment placement, on-skid or on-platform design.

Packaged Modular (Transportable)

Modular container or sea container design. Operation in various climatic zones.

Truck-Mounted

Designed on a trailer, skids, as well as in a self-propelled version based on the KamAZ and URAL chassis.

Prefabricated Building

Modular frame building using light steel thin-walled structures and sandwich panels.

Capacity, m³/hup to 3,000

Nitrogen purity, % up to 99.9

Pressure, MPaup to 35

Dew point temperature, °C−40 to −60

Operating temperature, °C–50 to +40

Membrane module operating life, thousand hoursup to 180

General Description

Grasys mobile membrane nitrogen generator is a self-contained system designed to generate up to 3 000 m³/h of nitrogen. Nitrogen systems are comprised of a diesel or electric driven compressor, air handling unit, gas separation unit and control system. One of the facility essential elements that in many ways determines performance infallibility and life duration is gas separation unit based on hollow fiber membrane technology. R&P Co. Grasys is engaged in a full cycle of developing and manufacturing mobile membrane nitrogen generators.

The core process and non-process equipment of nitrogen plants is mounted inside modular containers designed for operation in various climatic zones in line with the requirements of GOST 15150-69 and equipped with automatic systems of suction-and-exhaust ventilation, heating, fire-fighting, security and fire alarms, external, internal and emergency lights. Plants can be fabricated as permanently installed, trailer- or truck-mounted. Modular containers are made in the desired size and configuration. Subject to capacity and Customer’s requirements the plants are made in single-module or multi-module configuration.

Using in assembly with nitrogen systems compressor equipment, instrumentation from mainstream manufacturers, highly intelligent advanced control system and Grasys membrane gas separation unit of perfect design ensures its outstanding reliability, guaranteed achievement of the specified performance data and user friendliness. The mobile nitrogen generator provides service life of over 20 years.

Applications of Mobile Membrane Nitrogen Generators

Creating an inert atmosphere in various processes at remote facilities
Ensuring explosion and fire safety in various processes at remote facilities
Testing and purging of pipelines and equipment
Cleaning of process reservoirs
Preventing oxidation processes
Nitrogen fire extinguishing
Process catalyst regeneration
Product packaging in a nitrogen atmosphere

Advanced, Smart GRASYS Intelligent Control-8 Control and Monitoring System

The advanced, smart GRASYS Intelligent Control-8 monitoring and control system ensures the simplest and most convenient control of the GRASYS nitrogen generation plant.

The GRASYS Intelligent Control-8 monitoring and control system provides:

Full control of all nitrogen generation plant systems;
Manual, automatic and remote control options;
The ability to integrate the unit's control system into the factory-wide control system;
Emergency interlocks to protect against falling outside the permitted limits of key process parameters;
Switching the unit to standby mode under zero nitrogen consumption;
A wide range of additional options, including the ability to control unit parameters via the Internet;
Archiving the main technical parameters of the equipment;
The control panel is equipped with an active LCD display and shortcuts to access the most important functions.

Benefits of Grasys Mobile Membrane Nitrogen Generators

Exceptional reliability and high build quality based on extensive manufacturing experience
Perfect membrane module design
Advanced, smart GRASYS Intelligent Control-8 control and monitoring system
Using the high-performance membrane modules of the latest generation
Using components from the world's leading manufacturers
Minimum time required to warm up and start-up intermittently used packages (accelerated warm-up of equipment ensures quick start-up after downtime under the heating off conditions)
Supplied fully operational in a standard container
Comfortable working conditions for staff during routine maintenance, convenient maintenance at all seasons and in all weather conditions, storage facilities for tools, spare parts and accessories, calibrating gas mixtures, etc.
Dust and moisture proof, no condensation
Fire safe, vandal proof
Can be transported by all land and water modes of transport
Long, trouble-free operation
High energy efficiency
Small-sized, lightweight
Low cost of generated nitrogen
Low operating costs
