Helium Recovery Units

The use of Grasys membrane technology for the treatment of helium-bearing gas enables significant reductions in capital and operating costs in the industrial development of large helium-bearing gas fields. This is the only effective solution for the extraction of helium on remote fields.

The Grasys offer allows to

Concentrate helium and adjust the helium content of natural gas in remote fields, depending on the requirements/needs of the end user (gas processing plant, transportation requirements)

Ensure easy operation and automation of the plant

Ensure operational reliability and fault tolerance (proven design, no reagents required)

Ensure a long operating life of the plant

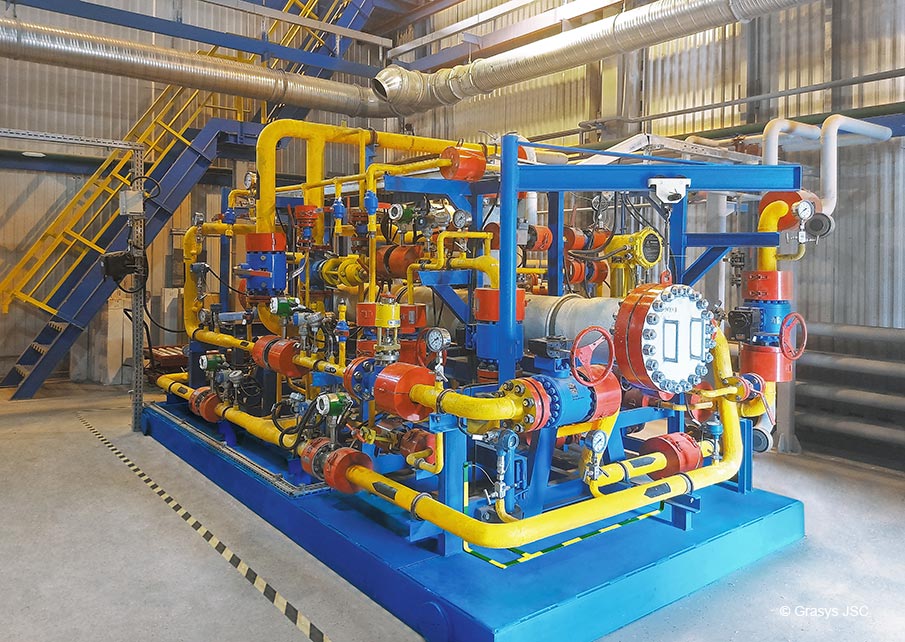

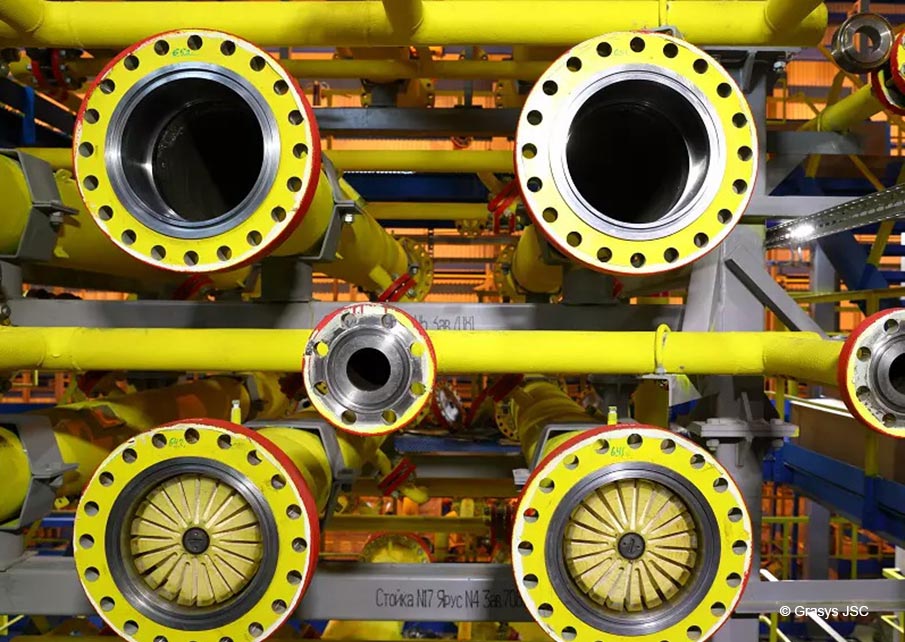

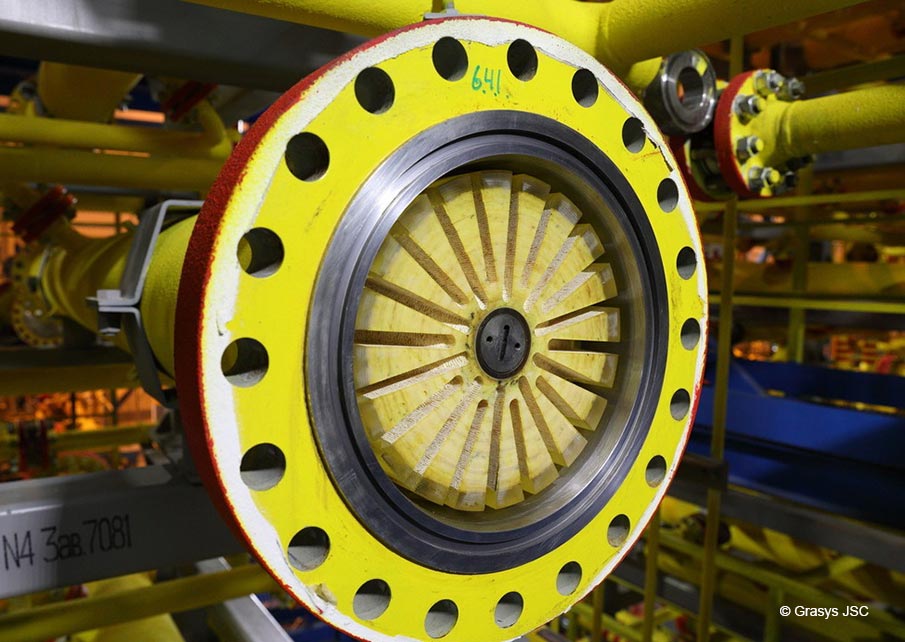

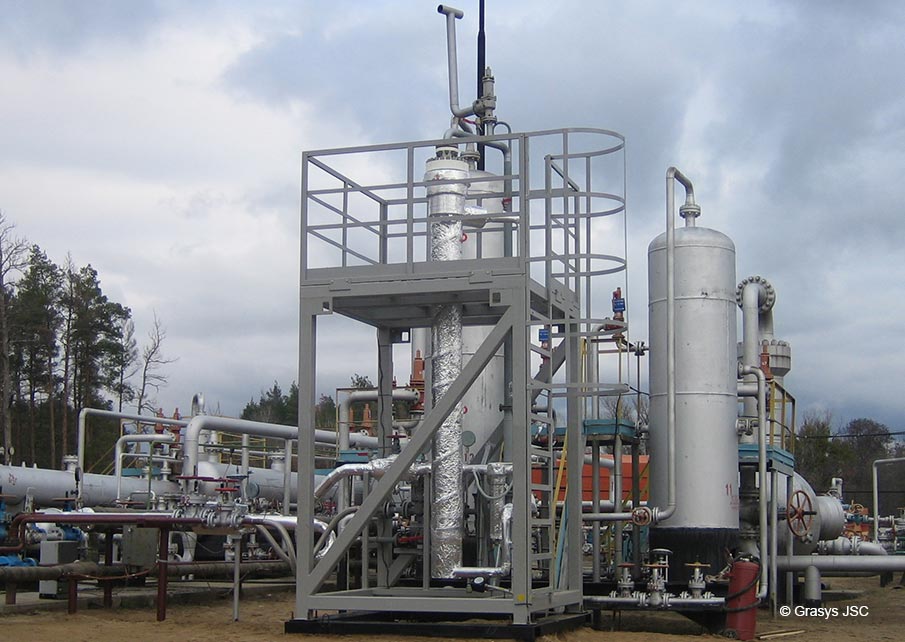

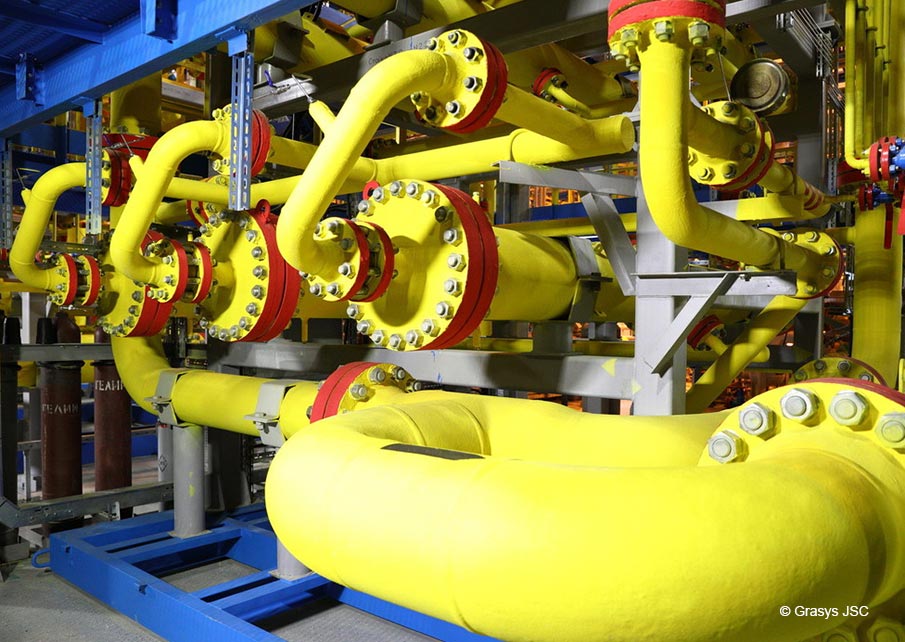

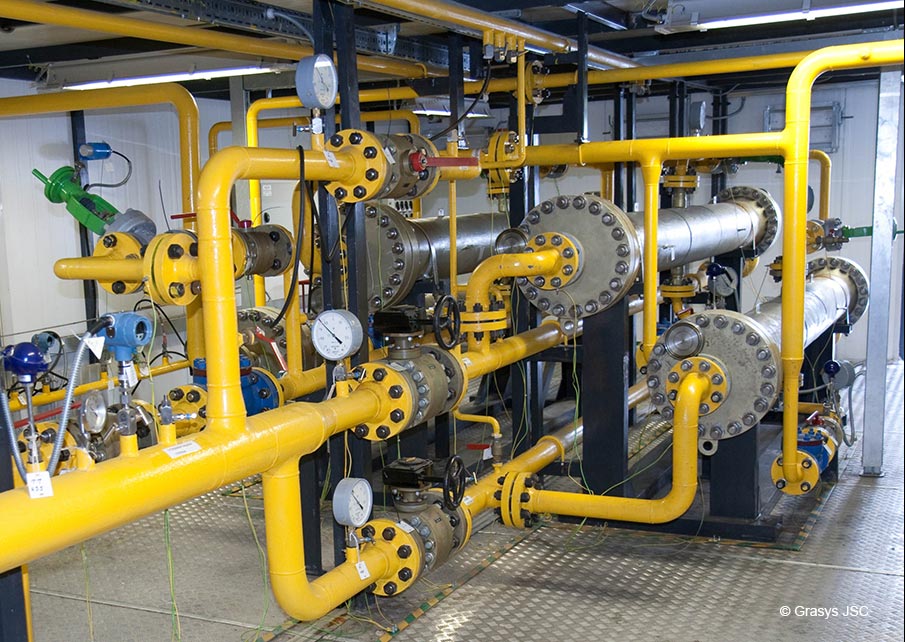

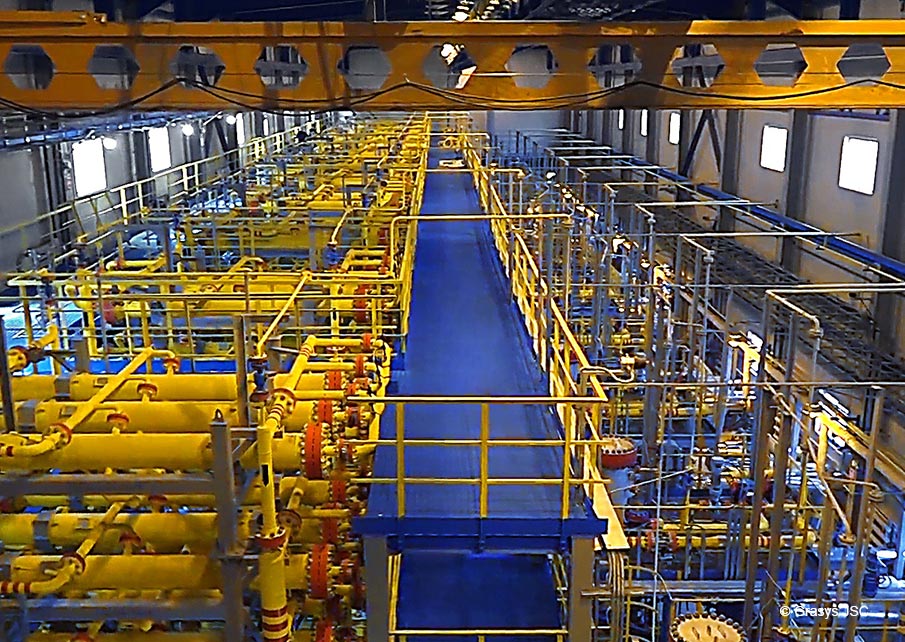

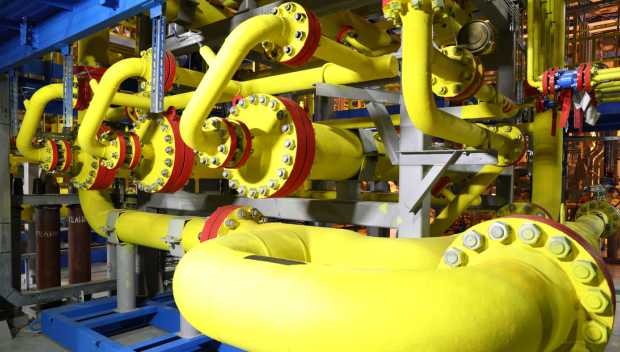

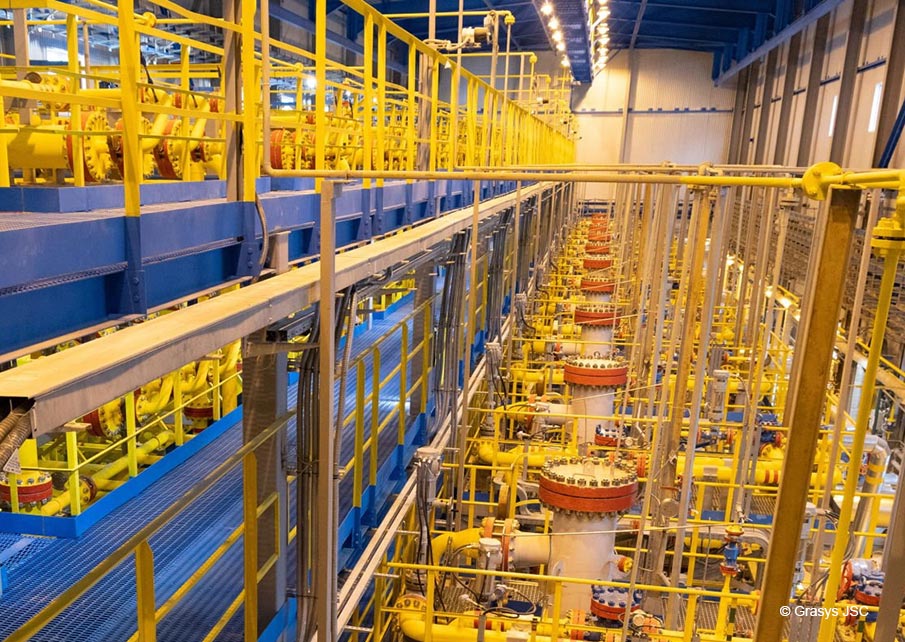

Product Images

Product Design Options

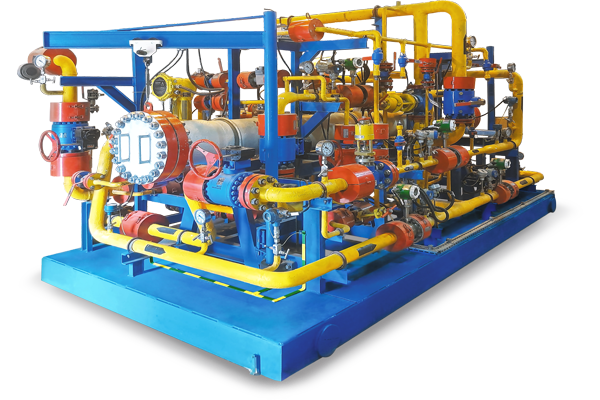

Fixed Design

Free equipment placement, on-skid or on-platform design.

Packaged Modular (Transportable)

Modular container or sea container design. Operation in various climatic zones.

Prefabricated Building

Modular frame building using light steel thin-walled structures and sandwich panels.

Achievable plant performanceTechnically unlimited

Helium concentration in the feed gas > 0.1% mol

Feed gas pressureup to 10.5 MPa

Helium content of the “concentrate” 40–70 (90) % mol

Residual helium content in the product streamот 0.01 до 0.05%

Reduction of the helium content in the product gas to meet the Customer's requirements. At the same time, the CO₂ content is reduced and the gas is additionally dehydrated.
Generation of a helium-rich stream for further injection into the formation.
Generation of helium “concentrate” (40 to 90% mol). It can be used as a raw material for the further production of commercial helium.

Benefits of the Grasys membrane helium extraction units:

Membrane units can be operated in the range of 5% to 100% of rated capacity by connecting/disconnecting the required number of membrane modules;
Membranes require no scheduled maintenance throughout their service life;
The use of Grasys membrane technology for the treatment of helium-bearing gas enables significant reductions in capital and operating costs in the industrial development of large helium-bearing gas fields. Membrane technology is the only effective solution for the extraction of helium on remote fields.
