Self-propelled nitrogen compressor stations

Mobile nitrogen compressor stations are highly efficient and exceptionally reliable systems designed for inert mixture production from air under high pressure.

Grasys new-generation mobile nitrogen compressor stations in the MVA series fundamentally differ from their counterparts currently existing in Russia and the CIS by their convenience and superior technical characteristics (production capacity of up to 2,000 nm³/hr, pressure of up to 350 atm, nitrogen purity of up to 99.9%).

Grasys also produces gas separation units used in self-propelled nitrogen compressor stations in the PKSA and SDA series and portable nitrogen compressor stations in the NDA series designed for production of nitrogen based inert mixture for the assurance of explosion and fire safety.

See more details about the projects performed by the company

Questionary
Self-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stationsSelf-propelled nitrogen compressor stations
General informationTechnical characteristicsBookletsDocumentation

General information

Today, the air compression method so far widely used in the CIS states due to its high technological effectiveness is banned by the Safety Rules for Oil and Gas industry PB 03-576-03. Mobile nitrogen compressors stations efficiently resolve the issue of the compression method application due to the use of a non-explosive inert mixture.

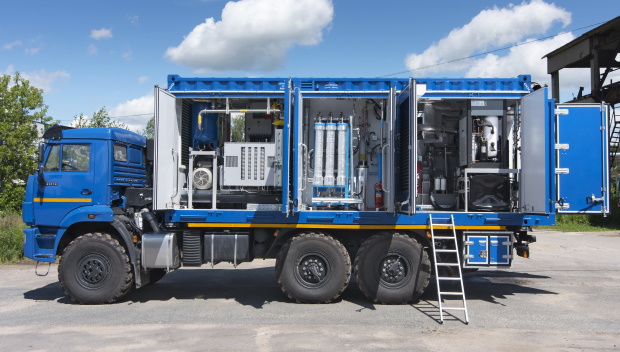

Structurally, the nitrogen station is a self-sustained system consisting of the gas separation unit and the diesel compressor and mounted on chassis or a portable frame. The nitrogen compressor station equipment is protected by the metal hood. One of the station main elements, crucial for its reliability and longevity, is the gas separation unit designed on the basis of the hollow-fiber membrane technology.

Grasys produces air separation units using the most advanced scientific developments in the field of membrane gas separation. The key advantage of Grasys membrane nitrogen generation systems used in mobile nitrogen compressor stations is their high reliability and ease of operation and maintenance.

MVA stations are recommended by Gosgortekhnadzor for use during drilling, development, workover and operation of oil and gas wells, entering pay formations, repair and operation of pipelines and tanks. Mobile nitrogen compressors stations are intended for nitrogen based inert mixture production from atmospheric air with the oxygen content not exceeding 10% at the minimum mixture pressure of 20 MPa.

Basic technical characteristics of mobile nitrogen compressor stations

Parameter Value
Nitrogen parameters at the station output
  • nitrogen purity, %
up to 99.9
  • volume recovery of gas mixture, nm³/hr*
up to 2,000
  • pressure, atmg
up to 350
  • dew point, °C
−40…−60
Ambient air temperature
  • during operation, °C
−45…+40
  • during storage, °C
−60…+50
Warm-up period, max, minutes 30
Design version skid-mounted,truck-mounted, trailer-mounted

* The capacity is referenced to the standard conditions (t = 20 °C, P = 1 atm).

Permit documentation

No. 1-258- 329/2020 Download PDF; 847,37 KB
ЕАЭС N RU Д-RU.НХ37.В.05050/20 Download PDF; 754,19 KB
Download PDF; 333,57 KB
