Capacity, m³/hup to 3,000
Nitrogen purity, %up to 99.9995
Dew point temperature, °C−55 to −75
Operating temperature, °C−50 to +40
Mobile PSA Nitrogen Generators
Grasys mobile PSA nitrogen generators are the turnkey packages for the production of nitrogen from atmospheric air, available in containerised modules of the required dimensions and configurations. The purity of nitrogen generated is up to 99.9995%. The plant can be supplied in a trailer-mounted, chassis-mounted or skid-mounted version for ease of transport.
Capacity
up to 3,000 m3/h
Nitrogen purity
up to 99.9995%
Warm-up period
up to 20 minutes
Operating temperature
–50 to +40 °С
When you choose Grasys equipment, you get reliable and long-lasting nitrogen generation packages.
Specially designed and manufactured for field use, mobile units are self-contained containerised systems for nitrogen generation from atmospheric air.
Product Images
Product Design Options
Fixed Design
Free equipment placement, on-skid or on-platform design.
Packaged Modular (Transportable)
Modular container or sea container design. Operation in various climatic zones.
Truck-Mounted
Designed on a trailer, skids, as well as in a self-propelled version based on the KamAZ and URAL chassis.

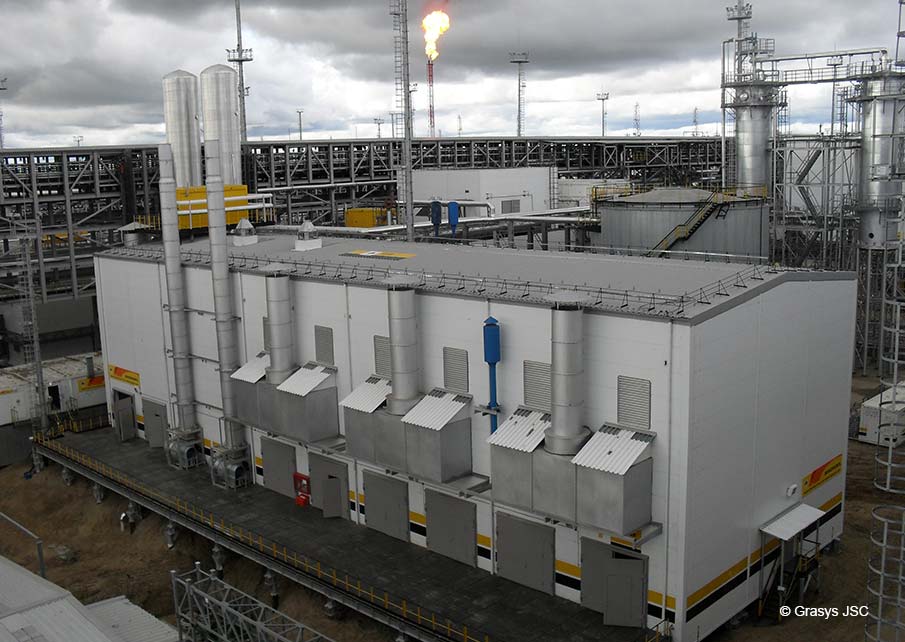

Prefabricated Building
Modular frame building using light steel thin-walled structures and sandwich panels.
Applications of Grasys Mobile PSA Nitrogen Generators
- Preventing oxidation processes
- Ensuring explosion and fire safety through air displacement
- Increasing the well flow rate
- Testing and purging of pipelines and equipment
- Hardening, carburising, brazing, annealing, sintering of metals
- Extending the shelf life of food products
Advanced, Smart GRASYS Intelligent Control-8 Control and Monitoring System
The advanced, smart GRASYS Intelligent Control-8 monitoring and control system ensures the simplest and most convenient control of the GRASYS mobile PSA nitrogen generators.
The GRASYS Intelligent Control-8 monitoring and control system provides:
- Full control of all nitrogen generation plant systems;
- Manual, automatic and remote control options;
- The ability to integrate the unit's control system into the factory-wide control system;
- Emergency interlocks to protect against falling outside the permitted limits of key process parameters;
- Switching the unit to standby mode under zero nitrogen consumption;
- A wide range of additional options, including the ability to control unit parameters via the Internet;
- Archiving the main technical parameters of the equipment;
- The control panel is equipped with an active LCD display and shortcuts to access the most important functions.
Benefits of Grasys Mobile PSA Nitrogen Generators
- The ability to generate high-purity nitrogen
- Minimum operating costs
- High degree of reliability and fail-safety
- Small-sized, lightweight
- Fully automated, easy to operate
- No operator supervision required during operation
- Quick start-up and shut-down of the unit
- Long operating life of the units
Booklets
Nitrogen Units and Plants Download PDF; 2.9 MB
Serial Nitrogen Generators NITROPOWER Download PDF; 2.5 MB
Grasys Corporate Brochure Download PDF; 9.8 MB
Grasys Brochure (short) Download PDF; 0.6 MB
Project References
Operating Procedure When Dealing With R&P Co. Grasys
1
Submit a request on the site or reach our specialist by phone
2
Grasys expert speaks to you and finds out your needs
3
You fill out a questionnaire with the desired equipment parameters
4
Our expert prepares a quotation with the most efficient solutions to your application. Contract to be concluded
5
We perform engineering, designing, manufacture equipment with its further testing and placing into service, etc
6
We ship equipment to the operational location and provide a package of documents
7
We are engaged in start-up operations and equipment commissioning
8
We provide aftersales service to ensure equipment efficient performance and reliability excellence (optional)
Advantages of Cooperating with R&P Co. Grasys
High-tech Russian manufacture
Implementation of import substitution programs
Hands-on experience in implementing over 1500 projects within 20 years
Manufacturing equipment of any size and level of sophistication
Turnkey projects (EPC-contracts)
Prompt technical support
